Product introduction
Target users: family farms, small cooperatives, machine operators, etc

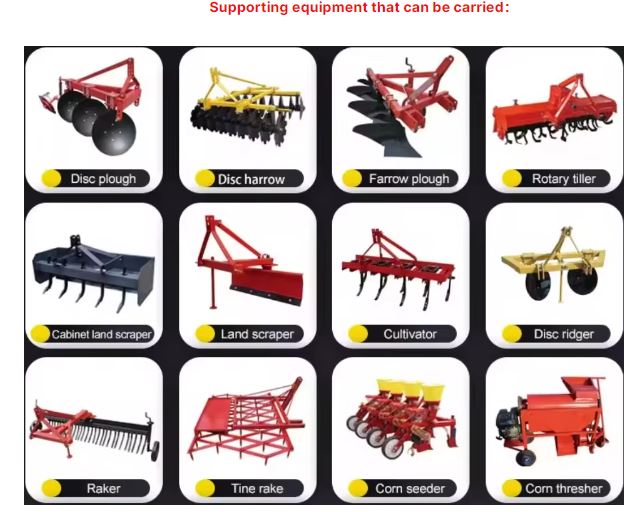

Operation type: sowing (2-4 rows), rotary tillage (1.5-1.8m on single axis), stubble removal, light load plowing; Paddy field rotary tillage, beating (2.2-2.4m), etc Product highlights: 1. Strong motivation Engine torque reserve >40%, stable and strong power; Optimized power curve, low speed zone, high torque, PTO operation more stable; The unique channel design of the engine + smooth large intake and exhaust port matching, fuel combustion efficiency is higher, lower fuel consumption. 2. Advanced lifting device: Built-in lifting handle, can realize the machine quickly hanging; Safe operation and efficient operation experience; Strong lift and strong drop elevator to meet the needs of different working conditions. 3. Safe and comfortable High precision molding control, high stiffness design, safety, durability, comfort; Professional-grade 360° all-weather vision optimization, air suspension seat, delicate, clear operating feel, highlighting the ultimate human-oriented operating experience.
Product Paramenters
|
Project
|
Unit
|
XT1004-5E1
|
|
Engine Model
|
/
|
YCF39120-T481
|
|
Engine Power
|
kW
|
73.5
|
|
Engine Rated Speed
|
rpm
|
2300
|
|
Air intake system / Fuel System
|
/
|
Turbo Charged
|
|
Gearbox
|
/
|
Dry double-acting clutch, 12F+12R synchronizer shifting
|
|
PTO Speed
|
rpm
|
540/720
|
|
PTO Power
|
kW
|
≥62.5
|
|
Traction
|
kN
|
≥23
|
|
Hydraulic outlet valves No.
|
/
|
2
|
|
Max Lifting Capacity
|
kN
|
≥12
|
|
Tillage depth adjustment method
|
/
|
Strong uplift, strong drop
|
|
Wheelbase
|
mm
|
2260
|
|
Min.Steering Radius
|
m
|
≤4
|
|
3-Point Hitch Type
|
/
|
Category 2
|
|
Fuel Tank Capacity
|
L
|
120
|
|
Front wheel track
|
mm
|
1343、1625、1729、1817
|
|
Rear wheel track
|
mm
|
1300、1630、1694、1812
|
|
Tyre Specifications
|
/
|
Front wheel ) 13.6-24 R1/11.2-28 R1/11.2-24 PR1/12.4-26 PR1(Rear wheel) 16.9-34 R1/16.9-34 R1/16.9-30 PR1/16.9-34 PR1
|
|
Max Front Counterweight
|
kg
|
400
|
|
Max Rear Counterweight
|
kg
|
400
|
|
Min Machine weight
|
kg
|
3530
|
|
Machine Dimensions
|
L*W*H
|
4390*2060*2720
|
Description
Key attributes
Other attributes
Applicable Industries
Building Material Shops, Farms, Energy & Mining
Weight (KG)
3530
Showroom Location
Brazil, Pakistan, Russia, Kazakhstan, Uzbekistan
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Hot Product 2024
Warranty of core components
1 Year
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Place of Origin
Shanghai, China
UNIQUE SELLING POINT
High operating efficiency
Condition
New
Warranty
1 Year
Engine
YCF39120-T481
After-sales Service Provided
Video Technical Support
Advantage
High Effective
Product use
Farmland
Quality
High-Quality
Function
Easy Operation
Dimension(L*W*H)
4390*2060*2720mm
Packaging and delivery
Selling Units:
Single item
Single package size:
445X215X280 cm
Single gross weight:
353.000 kg
